Cross-section · RDC-20
What lies under a podium garden
Scroll and the ground opens to show all five layers.
Five layers. One drainage system.RETECH RDC-20 — as installed on podiums, terraces and planters.

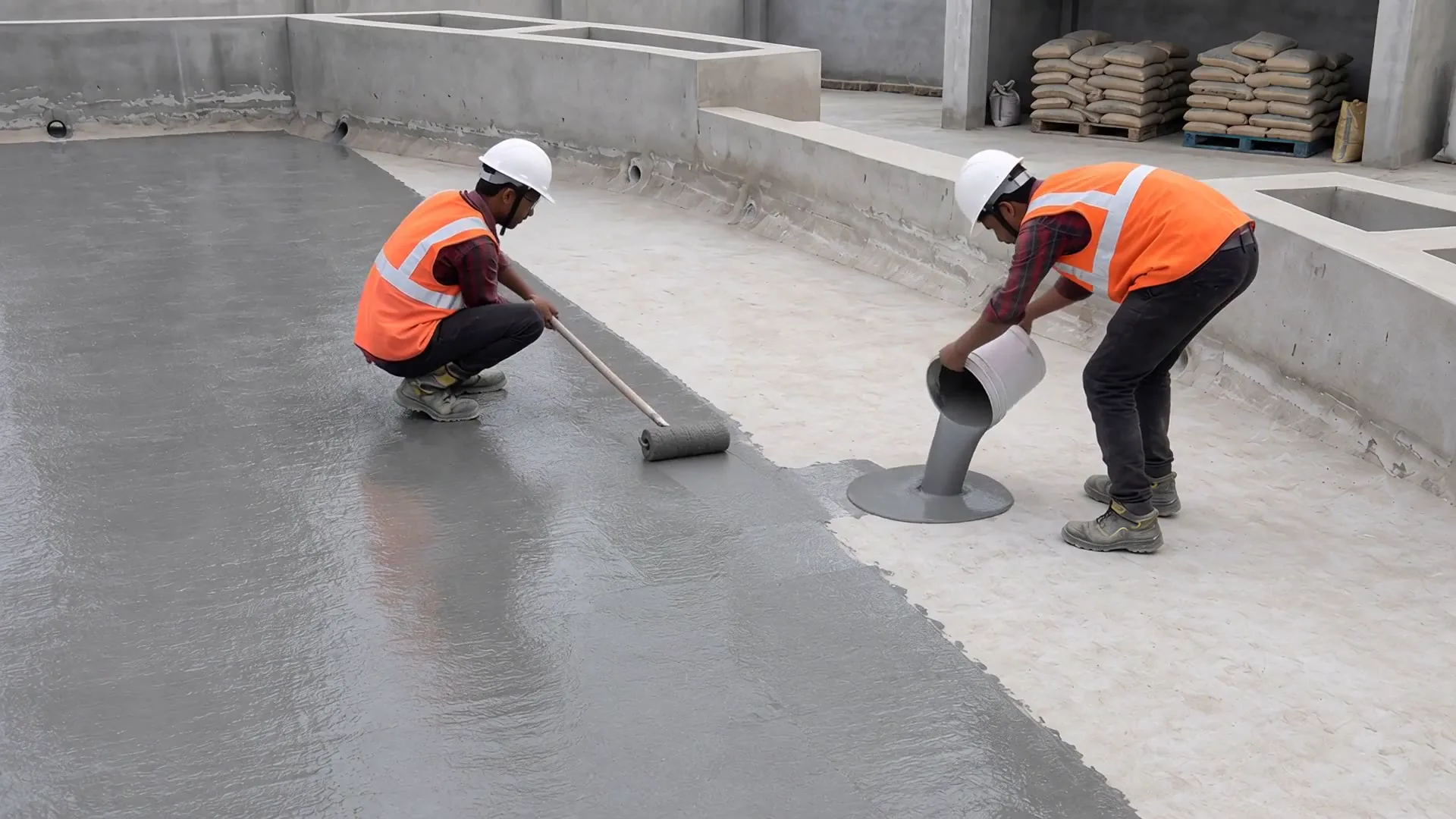

Waterproofing
The sealed substrate. Everything above it exists to keep water moving away from this surface.
RETECH RDC-20 drain cell
Interlocking 20 mm panels laid directly on the membrane form a continuous void. Water that reaches this layer has somewhere to go.
20 mm · Compressive on request · Flow on requestGeotextile, non-woven
Rolled over the cells as a filter. Lets water through, keeps soil fines out of the void so the flow path stays open.
Grade on requestGrowing medium
Soil at design depth. Drains freely into the cell instead of holding water against the slab.
Depth on requestVegetation
Lawn, planters, podium landscape. Excess water drains away below, so the root zone is not left waterlogged.
illustrationWhat it is
Drain cells (drainage cells) for podiums and terrace gardens, made by Retech Geosolutions in Gujarat, supplied across India and for export.
Lightweight polypropylene panel with an open cell core. Under terraces, landscaping, pavements and sports fields, it carries the load and provides a continuous drainage path.
Features
- Design flexibility
- Easy installation
- Durable
- Efficient
- Can be pegged to the sub-base on slopes and curves
- Light weight and high strength
- Chemical resistant
Applications
- Terrace and landscape decks
- Tunnels and landfills
- Golf courses and sports fields
- Paved areas and roadways
- Pond filtration
- Basements, agriculture and floriculture

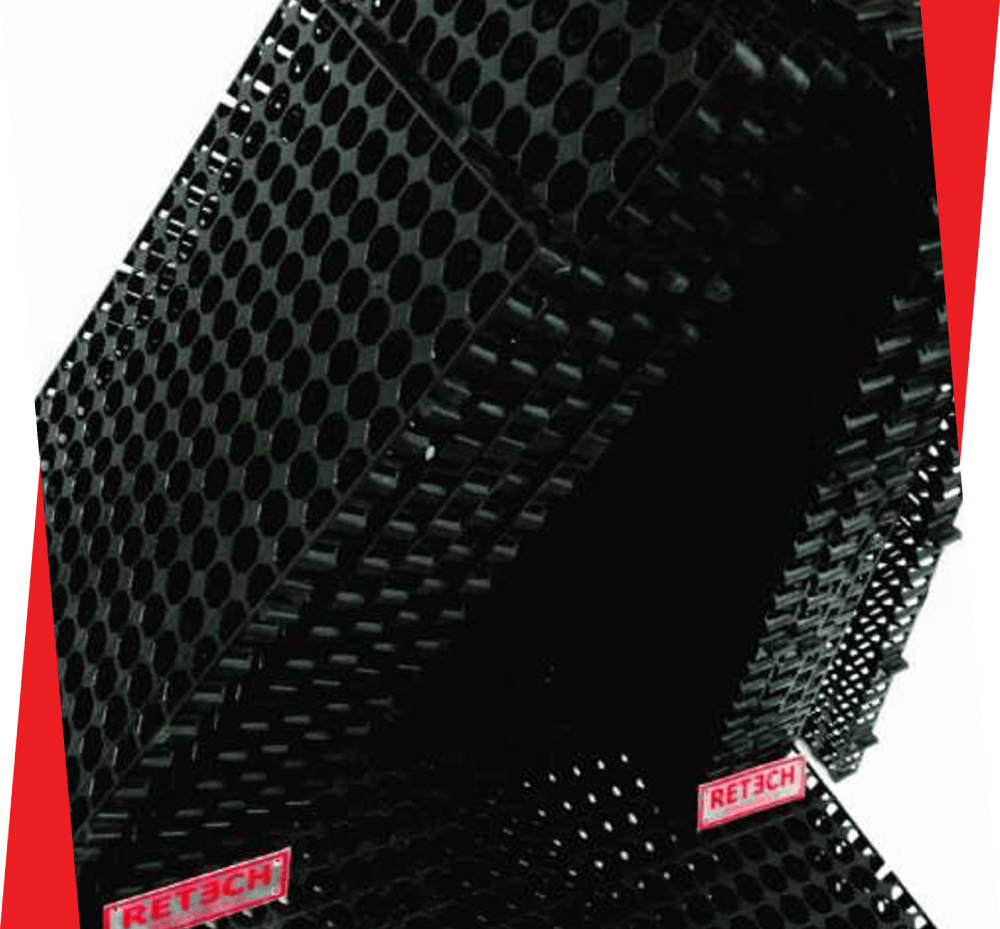

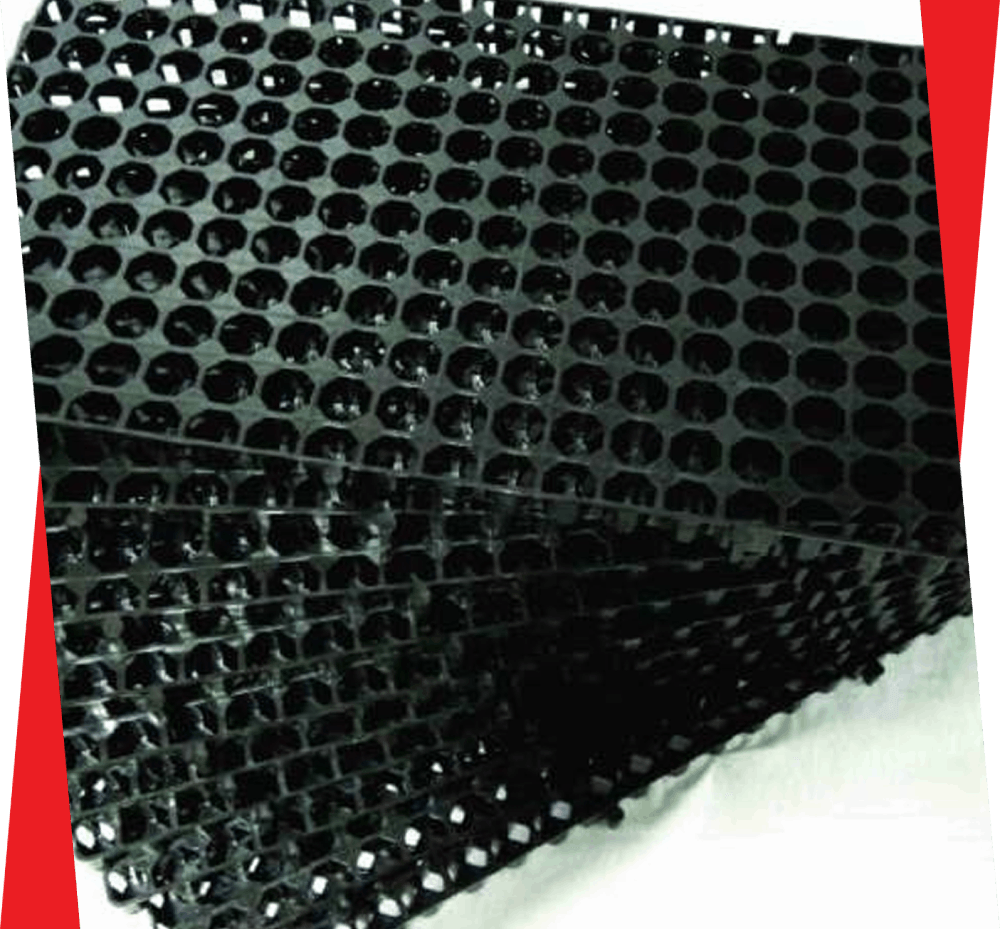

How it works
Retech drain cell is a lightweight, high-strength modular drainage cell made from polypropylene, designed for sub-surface drainage and for protecting waterproofing membranes. It is used under terrace gardens, planters and podiums, behind basement retaining walls, under landscape decks, in pond filtration, on sports fields and in agriculture and horticulture.
It protects the structure: the cell layer shields the waterproofing from the backfill and from damage during construction, and takes the water off it. Without drainage, water held against a wall carries salts from the soil into any crack and speeds up its deterioration.
Only excess water is removed, so the growing medium above keeps the moisture plants need.

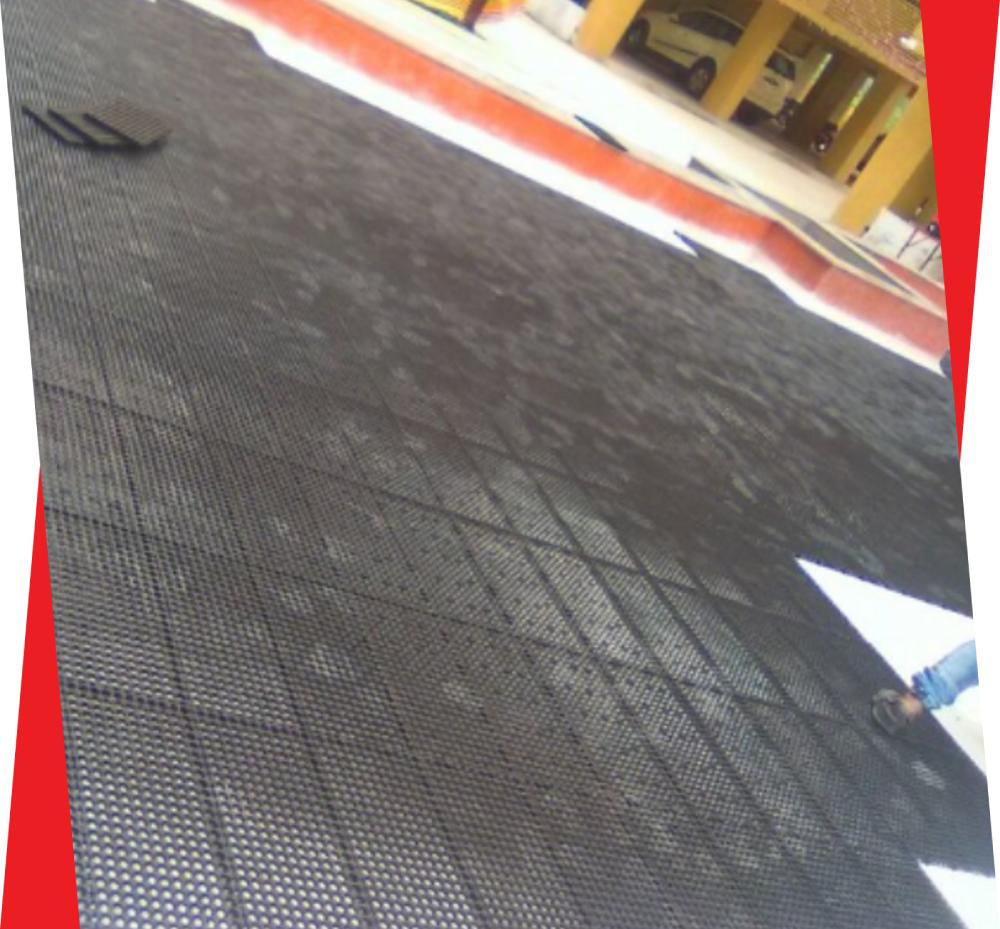

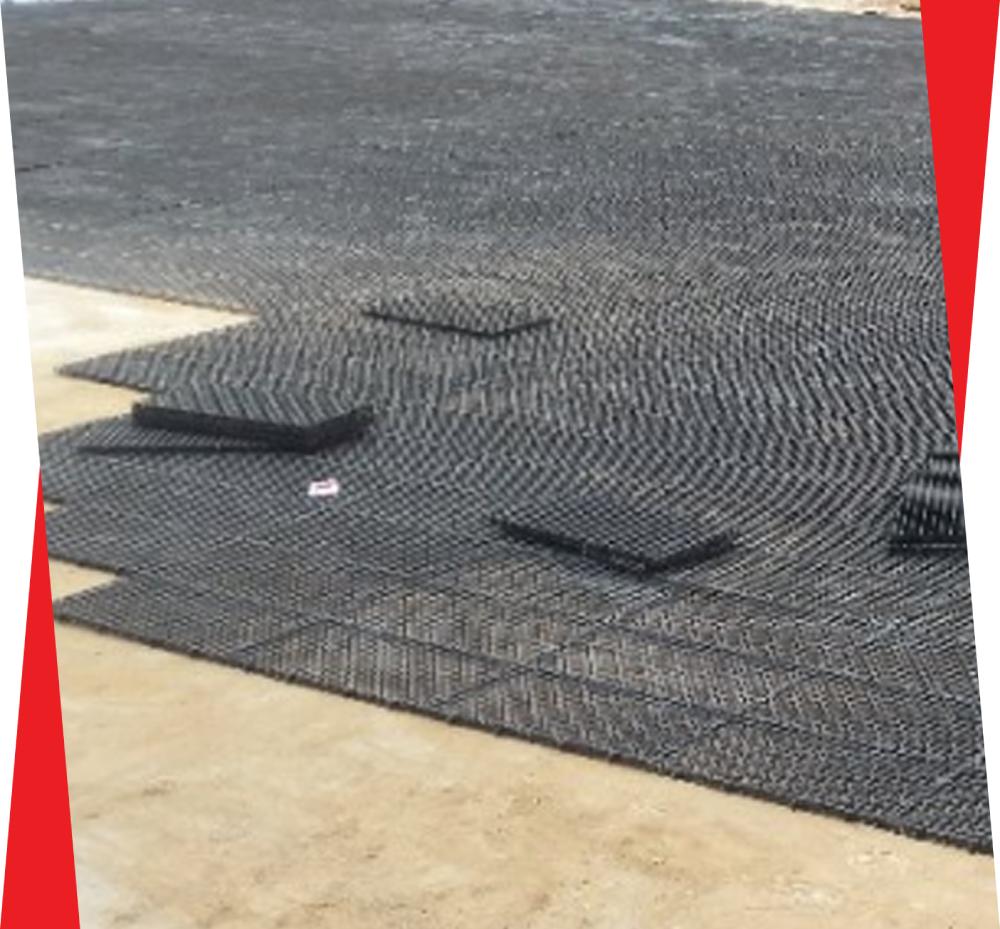

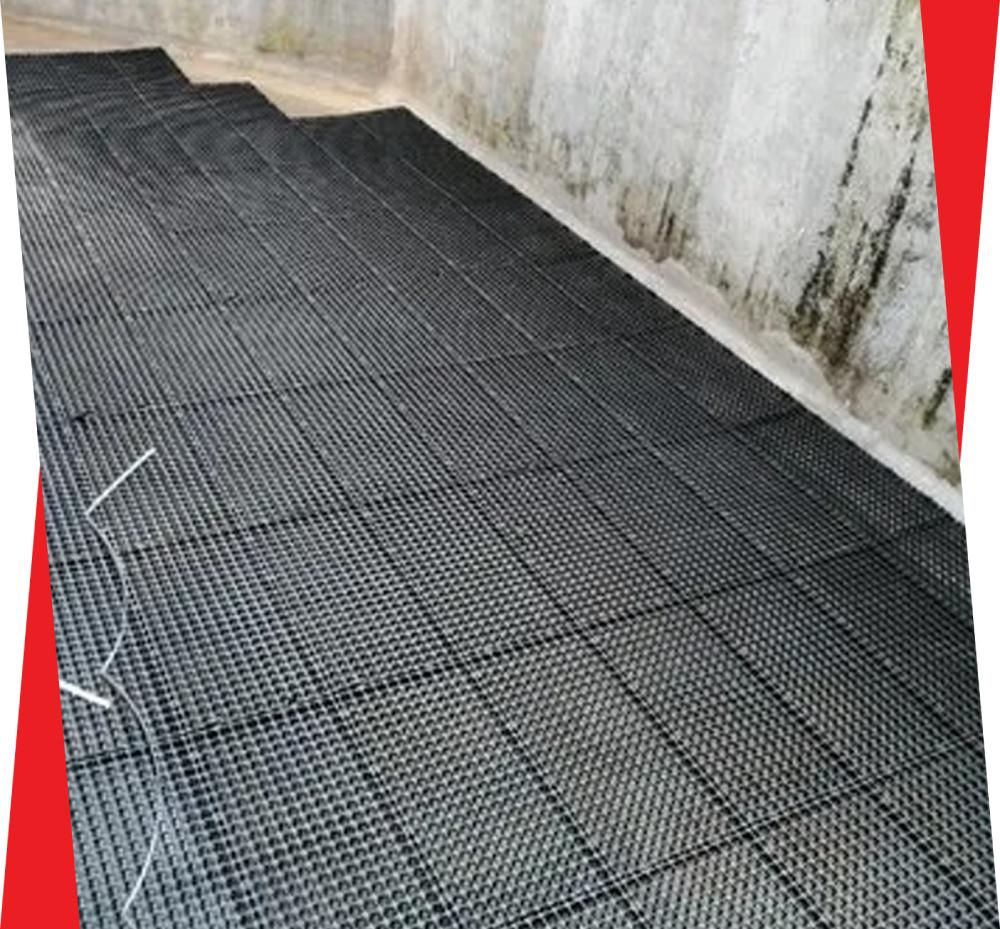

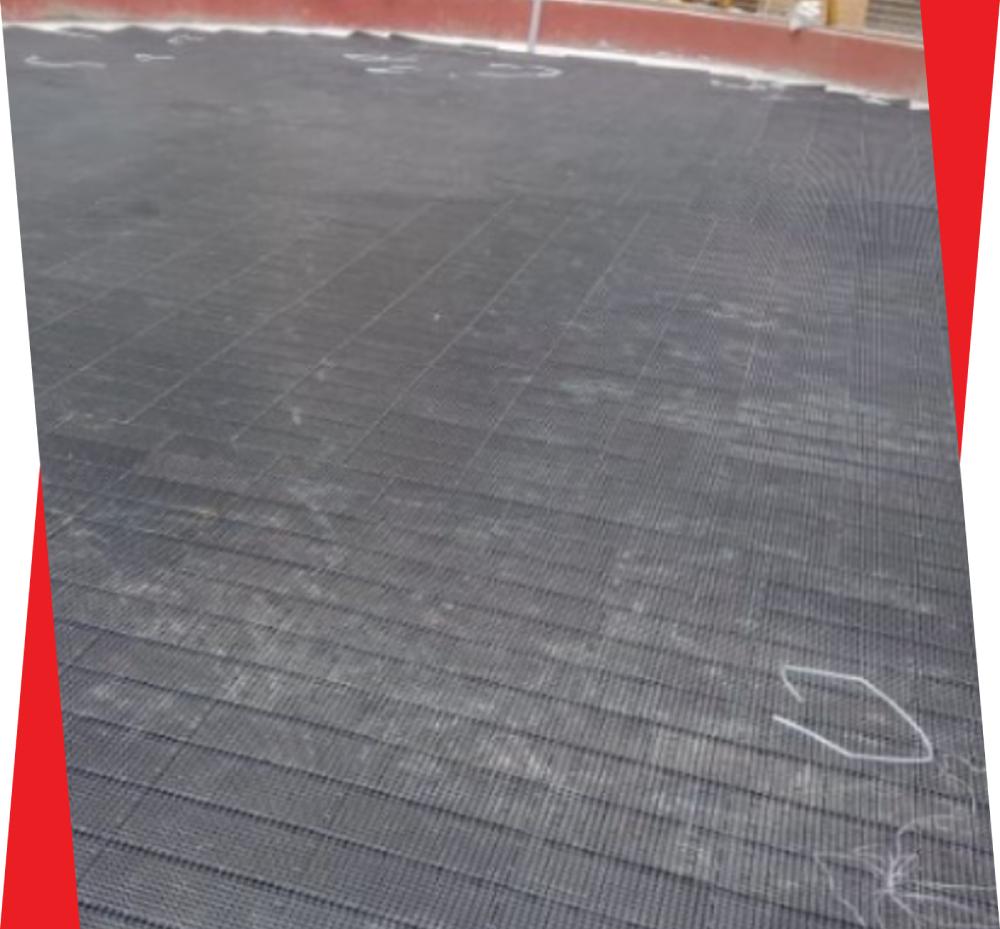

On site
Questions buyers ask
What is a drain cell?
A lightweight polypropylene panel with an open cell core, also called a drainage cell or drain cell mat. Laid on the waterproofing under soil or paving, it carries the load above and gives water a continuous path to the outlets.
How are drain cells laid on a podium or terrace garden?
On the finished waterproofing: drain cells first, a filter geotextile lapped over them, then the growing medium and the planting. Outlets are kept clear and the geotextile is lapped up the upstands so soil cannot enter at the edges.
What does a drain cell cost per square metre?
It depends on cell height, load rating, quantity and delivery location. Send the area and the build-up, and the Retech desk replies with a quote within one working day.
